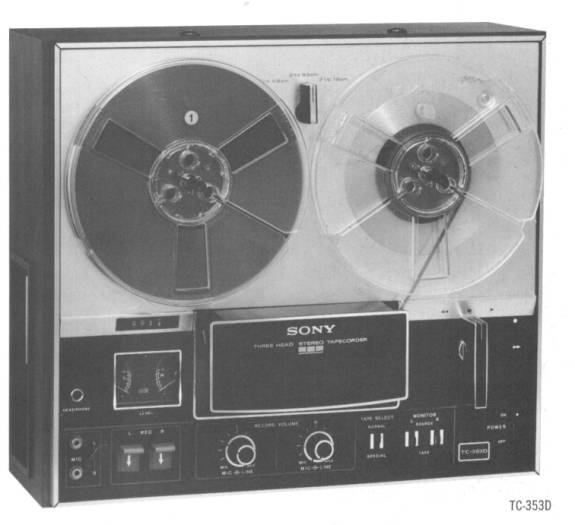

Sony Model TC-353D Economy
Three Head Stereo Tape Deck
For only a few dollars more than the TC-280, the added
flexibility of a three-head deck is yours! The TC-353D's three-head design
lets the user check the quality of a new recording while the recording is
in progress. In addition, a Record Equalization Selector Switch allows optimum
performance with either standard tape or Sony low-noise, high-output tape.
Simplified controls make perfect recording possible.
FEATURES-
- Three Heads
- Tape/Source Monitorying
- Ultra-High Frequency Bias
- Vertical or Horizontal Operation
- Mic/Line Mixing
- Quarter Track Stereo Record and Playback
- Three Speeds: 7-1/2, 3-3/4, 1-7/8 ips.
- Record Equalization Selector Switch for standard or Sony SLH-180
low-noise, high-output recording tape
- Sound-with-Sound
- Sound-on-Sound Capability
- Vibration-Free Motor
- Two VU Meters
- Pause Control with Lock
- Headphone Jack
- 4-Digit Tape Counter
- Microphone and Auxiliary Inputs
- Scrape Flutter Filter
- Built-in Reel Locks
- Retractomatic Pinch Roller
- Automatic Shut-Off
- Record Interlock
- Non-Magnetizing Record Head
- Automatic Tape Lifters
- Walnut Base
SPECIFICATIONS-
Frequency Response (SLH Tape): - 30 Hz to 25 kHz ±3dB @ 7-1/2 ips.
- 30 Hz to 17 kHz @ 3-3/4 ips.
- 30 Hz to 8 kHz @ 1-7/8 ips.
- Wow & Flutter @ 7-1/2 IPS (%) - .12
- Maximum Reel Size - 7"
- Rewind and Fast-Forward Time: 150 sec./1200 ft.
- Signal To Noise Ratio SLH Tape (db) - 55
- Bias Frequency (kHz) - 160
- Number of Motors - 1
- Capstan Drive Motor – Induction, Vibration free
- Power Requirements - 120 VAC, 35 watts, 60 Hz
- Microphone Input Plug - Mini
- Line Input Impedence (Ohms) - 100k
- Line Input Sensitivity (Volts) - .06
- Output Impedence (Ohms) - 10k
- Dimensions WxHxD (Inches) – 15-3/8x13-3/8x7-7/8
- Weight - 16lbs, 9oz.
Also available with integrated amplifier and speakers as Model TC-353
Photo and data direct from Sony(Superscope) brochures. Thanks to A. W. Covert,
Battle Creek, MI for this page.
